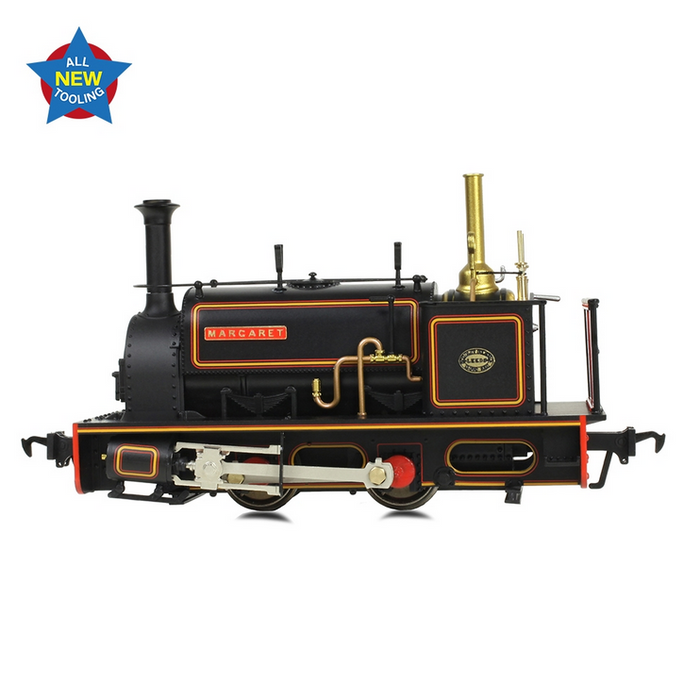

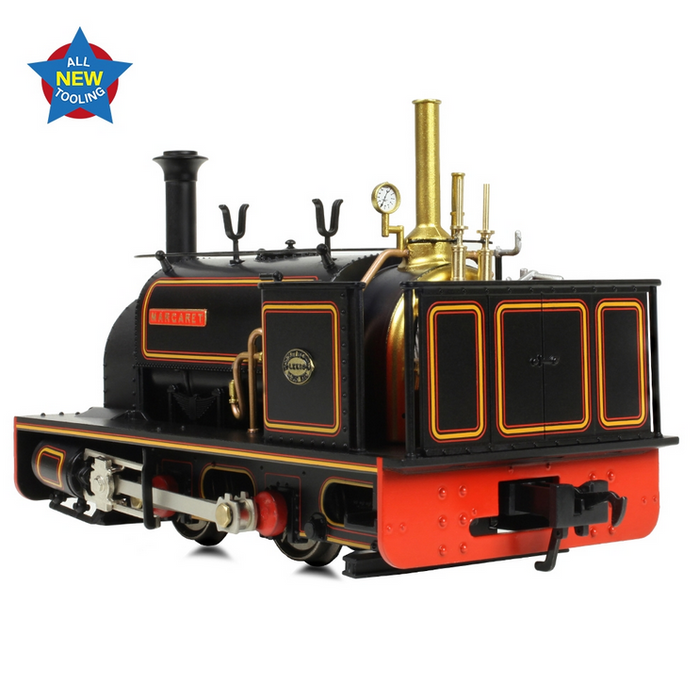

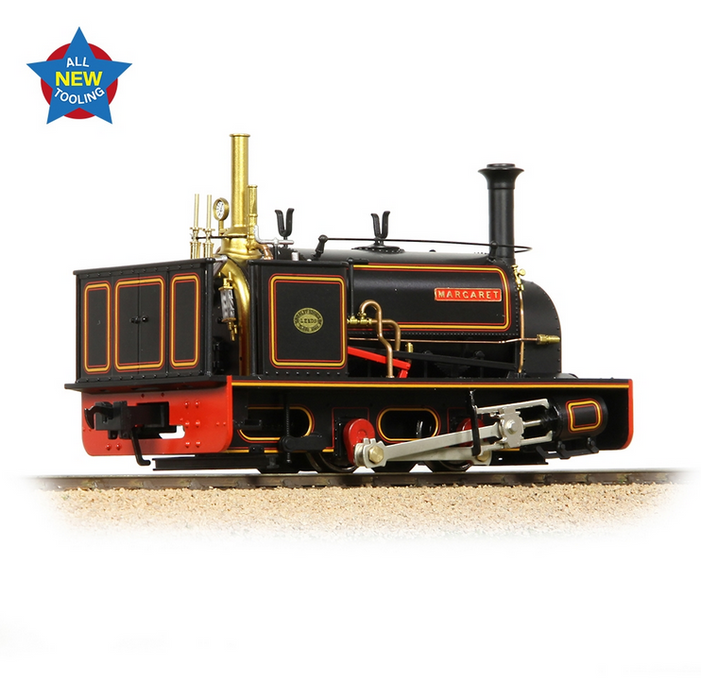

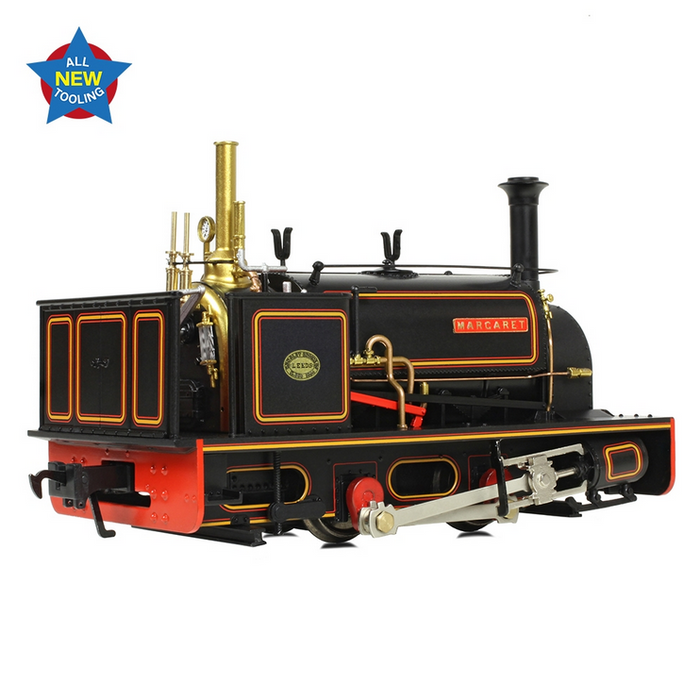

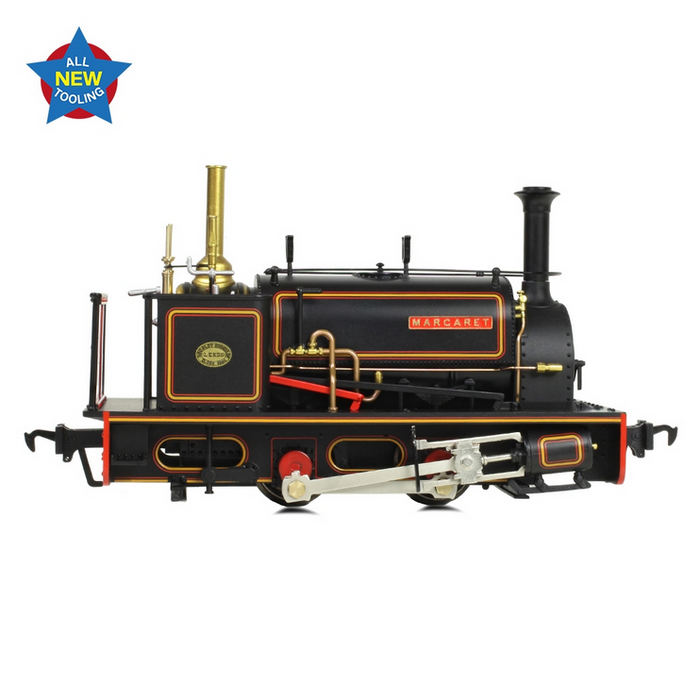

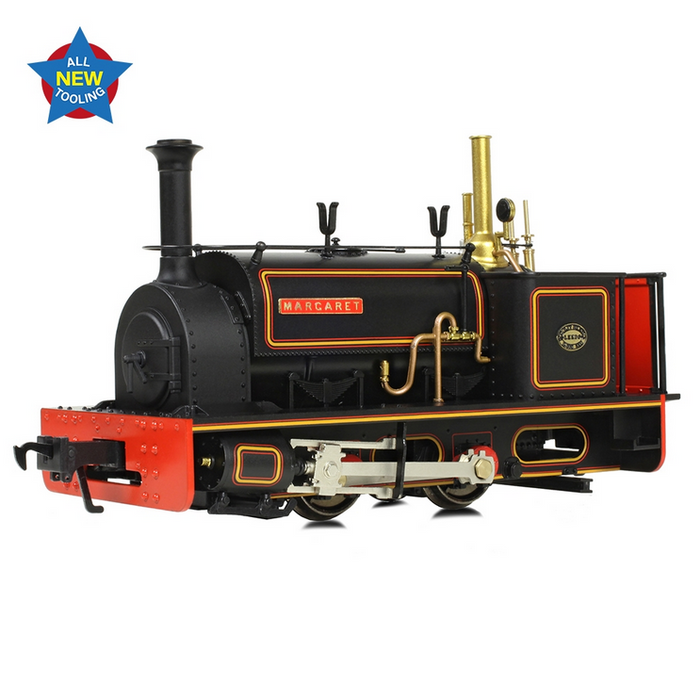

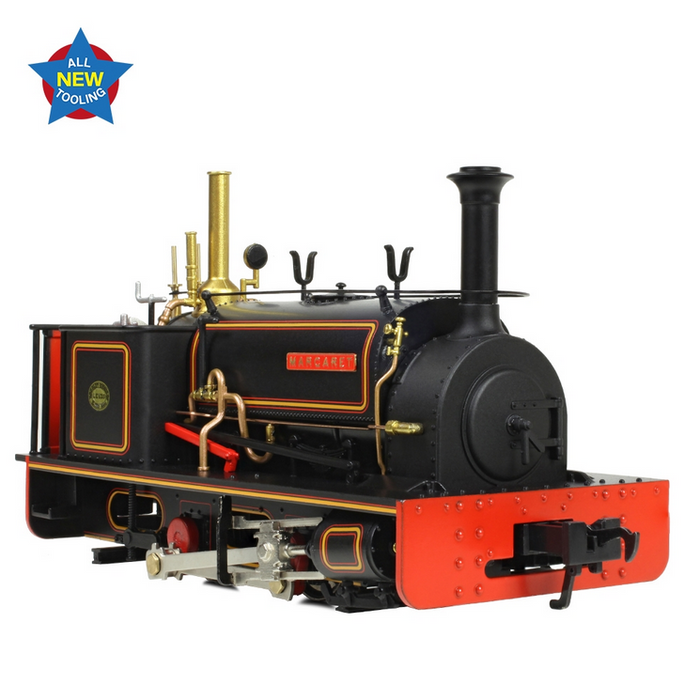

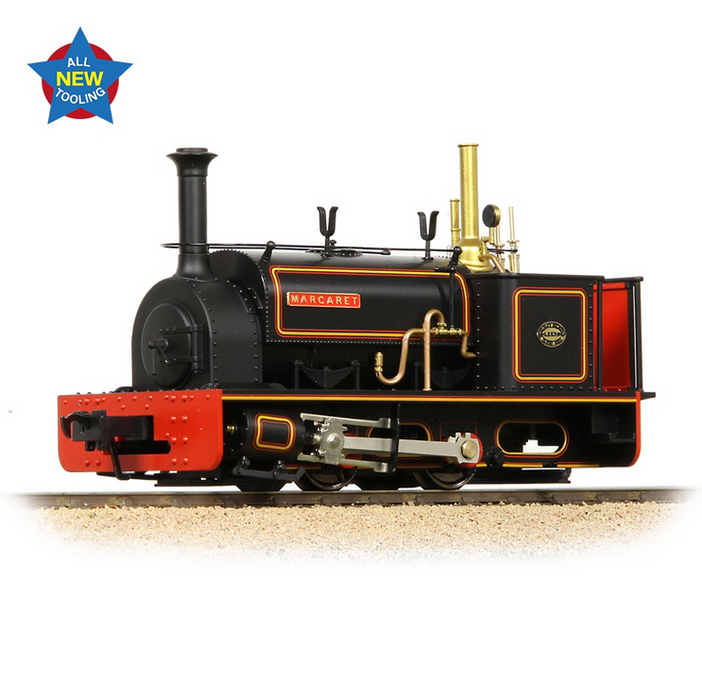

Bachmann NG7 71-027SF Quarry Hunslet 0-4-0ST "Margaret" in Penrhyn Quarry Lined Black (Early) - With DCC Sound

MECHANISM:

Coreless motor
Electrical pickup from all wheels
Separate metal bearings fitted to each axle
Diecast metal chassis block
Diecast metal gearbox, with gearing arranged for prototypical running speeds and haulage capabilities
5mm (NG7/O-16.5 narrow gauge) wheels to NEM310 & NEM311 standards with authentic profile and detailing
Detachable coupling pockets to NEM362 standards fitted at each end, into which a standard NG7 coupling is fitted (alternative couplings provided for optional fitting)
Designed to operate on curves of first radius (371mm) or greater

DETAILING:

Precision moulded plastic bodyshell, cylinder block, frames and footplate
Authentic outside-framed running gear with valve gear constructed completely from metal components
Highly detailed and decorated cab interior including separately fitted regulator, reverser lever, handbrake and gauge frames, and hinged firebox door which can be posed open/closed
Separately applied details including reverser, injectors, handrails, smokebox dart, whistle, brake blocks, springs, and tool brackets & Lamp Irons (where applicable)
Each model supplied with a set of authentically decorated etched name plates and works plates
Each model supplied with an accessory pack including alternative couplings, bufferbeam filler plates and fire tools

LIGHTING:

Firebox Glow (on analogue) / Firebox Glow & Flicker (on DCC or when SOUND FITTED models are used on analogue)

DCC:

Next18 DCC decoder interface

SOUND:

Speaker installed in all models for optimum sound reproduction
Zimo MS590N18 DCC Sound Decoder fitted to SOUND FITTED versions
Sound files produced specifically for the Bachmann Narrow Gauge Quarry Hunslet using recordings from real locomotives
SOUND FITTED models operate on DCC and Analogue control as supplied

History from Bachmann's website:

The Quarry Hunslet locomotives were built by the Hunslet Engine Company of Leeds. Rather than denoting a single design, the term Quarry Hunslet refers to several different locomotive types, each built to a similar design, but with specifics suited to their intended use. The first Quarry Hunslets were the Penrhyn Port Class, built for shunting duties at Port Penrhyn, the coastal port of Penrhyn Quarry – once the largest slate quarry in the world. These locomotives sported a 4ft wheelbase and the first example was delivered in 1883.

In 1886 the nearby Dinorwic Quarry, Wales’s second largest slate quarry, took delivery of its first Quarry Hunslet, named ‘Velinheli’. Smaller than the Penrhyn locos with a wheelbase of just 3ft 3in, the second Dinorwic loco, delivered in 1889 and originally named ‘Alice’, would lend its name to the locomotive type and by 1904 eleven Alice Class Quarry Hunslets had been delivered to the Dinorwic Quarry. All were built to fundamentally the same design, although details inevitably changed over the years, but a notable feature of the Alice Class locos was the angled frames and resulting shallow bufferbeams at the front and rear. At the quarry the locomotives were moved between the various galleries and to and from works via the steep inclined planes – straight frames would bottom out on these steep inclines, a problem avoided by building the locos with angled frames.

Five similar locomotives were built for use at Port Dinorwic during the same period, these shared much the same design as the Alice Class locos but had straight frames which resulted in them sporting much deeper bufferbeams. The Alice Class also provided the blueprint for six more engines which were built for smaller concerns; the Pen-Yr-Orsedd Quarry which took three, Moel Tryfan Quarry had two, and a single example was delivered to the Dorothea Quarry. The Penrhyn Quarry placed orders for four of these smaller 3ft 3in. wheelbase locomotives too – these became known as the Penrhyn Small Quarry Class to avoid any association with their rivals the Dinorwic Quarry. Penrhyn Quarry would later order another six Quarry Hunslets, but these reverted to the 4ft wheelbase used on the Penrhyn Port Class locos; whilst very similar in design, this final batch of Quarry Hunslets were different enough to be known instead as the Penrhyn Large Quarry Class.

‘Margaret’ was one of the four Penrhyn Small Quarry Class locomotives built for the Penrhyn Quarry and intended to replace the De Winton locomotives that were becoming life expired. Works number 605, ‘Margaret’ was completed in 1894 and worked in the quarries until 1950 when she was withdrawn. Once thought to be beyond restoration, in 1999 the Vale of Rheidol purchased ‘Margaret’, but it was not until 2015 that she returned to steam for the first time in 65 years. As part of the restoration ‘Margaret’ received a new boiler and became the first locomotive to be completed in the Railway’s new workshop, which had itself been completed a year earlier in 2014.
