Kadee 742 - #742 O Gauge Type E Medium Overset Metal Couplers with Plastic Gearboxes

by KADEE

Details

Information from Kadee's website:

#742 Type E Medium Overset Metal Couplers with Plastic Gearboxes - Black - O Scale

O Scale MAGNE-MATIC

This industry leading coupler features New Generation AAR Type "E" "Prototype" Head Medium Overset Metal Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids The #742 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).

It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.

#742 Coupler Instructions

Two pair per package

O-Scale

New Generation AAR Type "E" "Prototype" Head:

Simple Drop in Design
Trouble Free Operation
Hidden Knuckle Spring
AAR Type "E" Coupler Style
Compatible with Kadee® O-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...

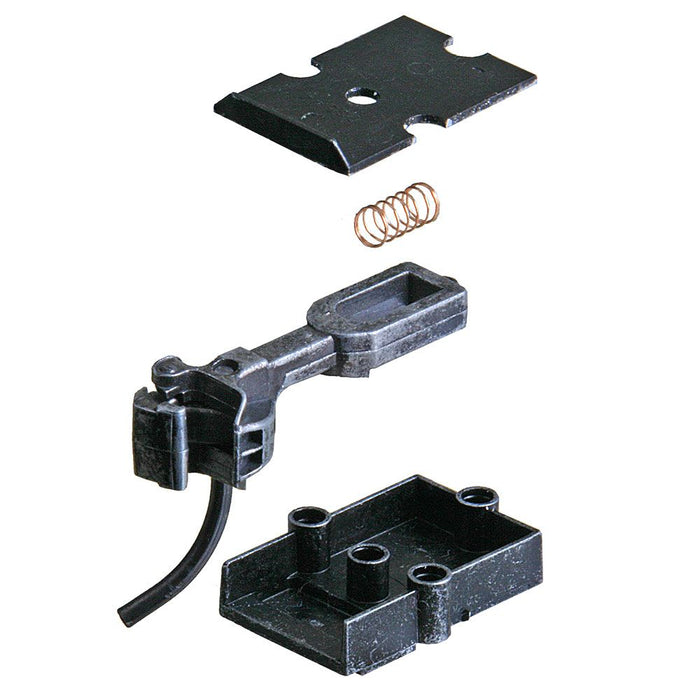

Package Includes:

(4) Each #742 Type "E" "Prototype" Metal Couplers - Medium Overset Shank
(4) Each #817 Plastic Gearboxes & lids
(5) Each #850 O Scale Centering Springs

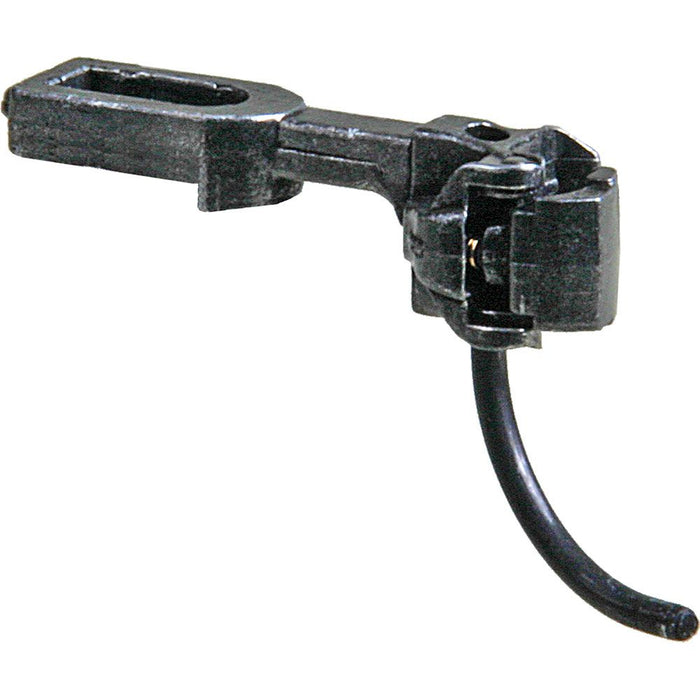

#742 Metal Coupler Features:
Material - Metal
Shank Length - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset - Overset
Centering Spring - #850 O Scale Centering Springs
Head - New Generation AAR Type "E" "Prototype" Head
Works With - #817, #818, #819 Draft Gearboxes

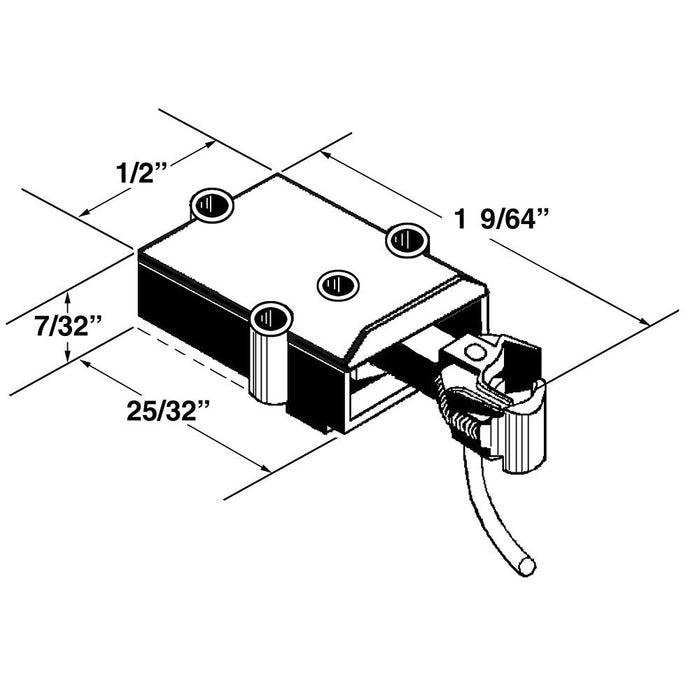

#817 Plastic Draft Gearboxes & Lids Features:
Material - Plastic
Dimensions - 25/32"L x 1/2"W x 7/32"H
Works With - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

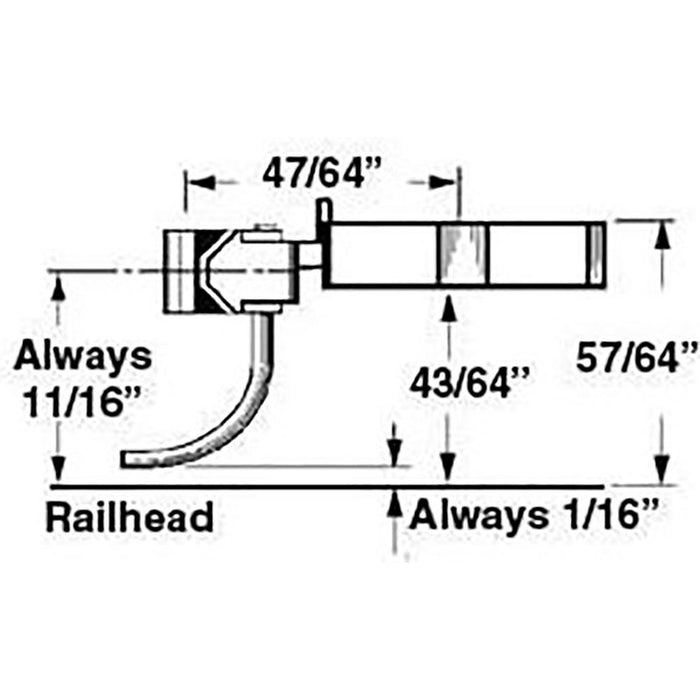

Mounting Specifications:
Mounting Height - 57/64"
Centerline - 1 1/16"
Trip Pin Height - 1/16"
Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)

Recommended Tools:

#812 O Scale Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#240 Double Headed Pin Vise
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap (2-56) and Drills (#50 and #43)
