Kadee 745 - #745 O Gauge Type E - Medium Centerset Metal Couplers with Plastic Gearboxes (4pcs)
by KADEE
Details
Information from Kadee's website:
#745 Type E Medium Centerset Metal Couplers with Plastic Gearboxes - Black - O Scale
O Scale MAGNE-MATIC
This industry leading coupler features New Generation AAR Type "E" "Prototype" Head Medium Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #745 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
#745 Coupler Instructions
Two pair per package
O-Scale
New Generation AAR Type "E" "Prototype" Head:
Simple Drop in Design
Trouble Free Operation
Hidden Knuckle Spring
AAR Type "E" Coupler Style
Compatible with Kadee® O-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...
Package Includes:
(4) Each #745 Type "E" "Prototype" Metal Couplers - Medium Centerset Shank
(4) Each #817 Plastic Gearboxes & lids
(5) Each #850 O Scale Centering Springs

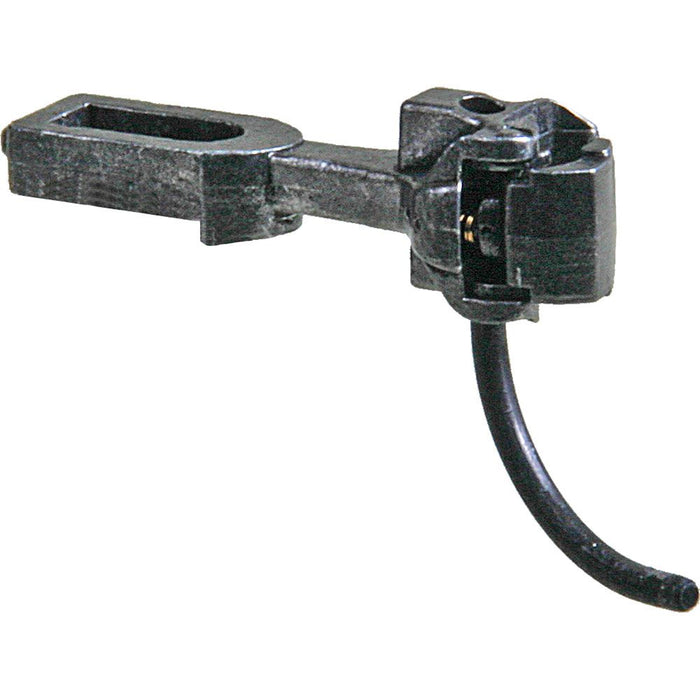

#745 Metal Coupler Features:
Material - Metal
Shank Length - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset - Centerset
Centering Spring - #850 O Scale Centering Springs
Head - New Generation AAR Type "E" "Prototype" Head
Works In Place of - #740, #800, #801, #804, #805, & #816 O Scale Medium Centerset Shank Couplers
Works With - #817, #818, #819 Draft Gearboxes
#817 Plastic Draft Gearboxes & Lids Features:
Material - Plastic

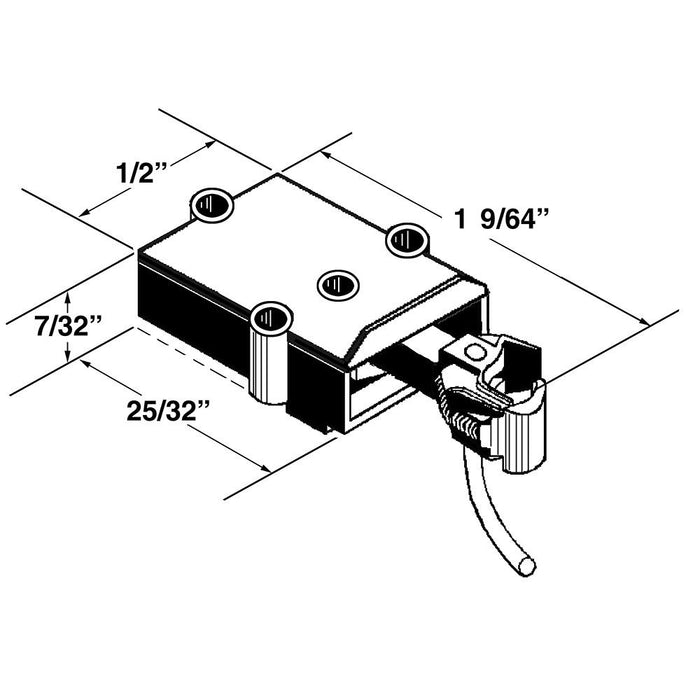

Dimensions - 25/32"L x 1/2"W x 7/32"H
Works With - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers

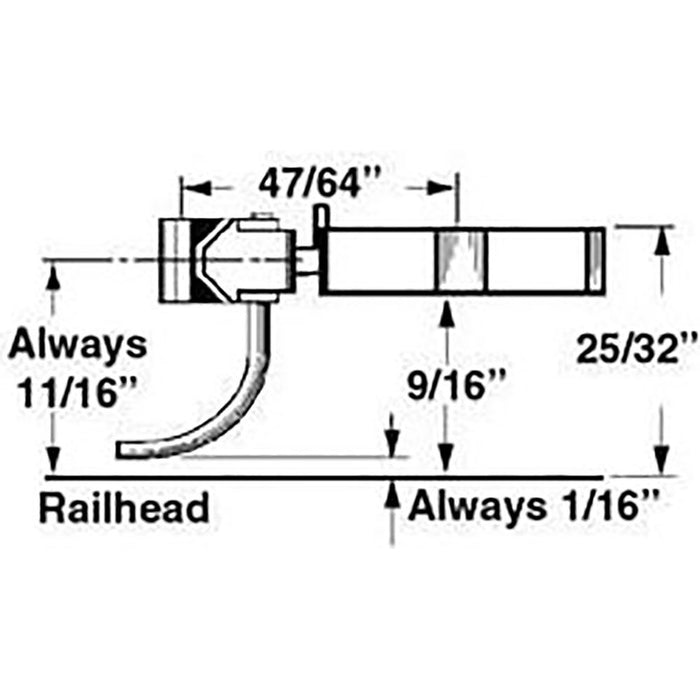

Mounting Specifications:
Mounting Height - 25/32"
Centerline - 1 1/16"
Trip Pin Height - 1/16"
Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Recommended Tools:
#812 O Scale Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#240 Double Headed Pin Vise
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap (2-56) and Drills (#50 and #43)
#745 Type E Medium Centerset Metal Couplers with Plastic Gearboxes - Black - O Scale
O Scale MAGNE-MATIC
This industry leading coupler features New Generation AAR Type "E" "Prototype" Head Medium Centerset Metal Couplers, and #850 O Scale centering spring and comes complete with Plastic Gearboxes and lids. The #745 Metal Coupler may be mounted with the included #817 Plastic Gearbox or #818 Metal Gearbox (sold seperatly), #819 Extended Metal Gearbox (sold seperatly).
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
#745 Coupler Instructions
Two pair per package
O-Scale
New Generation AAR Type "E" "Prototype" Head:
Simple Drop in Design
Trouble Free Operation
Hidden Knuckle Spring
AAR Type "E" Coupler Style
Compatible with Kadee® O-Scale Couplers
World-Renowned Quality & Performance
They just Last & Last & Last...
Package Includes:
(4) Each #745 Type "E" "Prototype" Metal Couplers - Medium Centerset Shank
(4) Each #817 Plastic Gearboxes & lids
(5) Each #850 O Scale Centering Springs
#745 Metal Coupler Features:
Material - Metal
Shank Length - Medium (47/64") (Knuckle pulling face to center hole of Draft Gearbox)
Coupler Offset - Centerset
Centering Spring - #850 O Scale Centering Springs
Head - New Generation AAR Type "E" "Prototype" Head
Works In Place of - #740, #800, #801, #804, #805, & #816 O Scale Medium Centerset Shank Couplers
Works With - #817, #818, #819 Draft Gearboxes
#817 Plastic Draft Gearboxes & Lids Features:
Material - Plastic
Dimensions - 25/32"L x 1/2"W x 7/32"H
Works With - #740, #742, #745, #746, #747, #800, #801, #804, #805, & #816 Couplers
Mounting Specifications:
Mounting Height - 25/32"
Centerline - 1 1/16"
Trip Pin Height - 1/16"
Mounting Holes - 2-56 Insulated Screws are the most commonly used. (Screw length will vary)
Recommended Tools:
#812 O Scale Coupler Height Gauge
#231 Greas-em Dry Graphite Lubricant
#237 Coupler Trip Pin Pliers
#240 Double Headed Pin Vise
#241 Dual Tool Manual Uncoupling Tool and Spring Pick
#246 Tap (2-56) and Drills (#50 and #43)
